Onten 7593 HDMI 3 Ports Switch 3 in 1 Out HDMI 4K Switch

Weight	0.1 kg
Color	Black

Onten 7593 3 in 1 Out HDMI 4K Splitter Converter

Overview

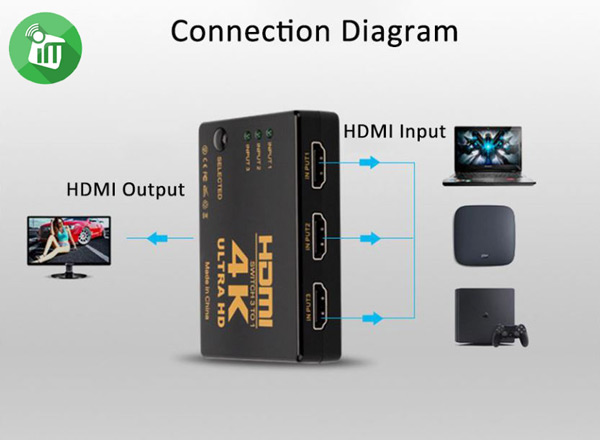

Switch freely between 3 devices

This HD switch lets you connect up to 3 HD sources with HD display, seamless transitions between games, TV and more. Supports full 3D and HD resolutions up to 4K x 2K @ 30Hz, 1080P @ 120Hz and 1080P 3D @ 60Hz. IR Remote Control: Never leave the comfort of your couch as you switch between devices quickly and easily. Auto Switch: Automatically switches sources based on active input. Support 24bit, 30bit, 36bit deep color.

Wide Compatibility

Works with all HDTV, STB, Blu-Ray, DVD, DSTV HD-PVR, PS3, PS4, Xbox 360, Xbox One, Projector, Apple TV (all versions) and other HDMI compatible devices. Supports HD 1.4b, HDCP 1.0/1.1 standards. Supports 10.2Gbps transmission rate and maximum bandwidth up to 300MHz. Helps reduce the clutter of HD wires provided in your HDTV. Note: Power adapter is not included! Specifications: Item Name: 3 Port HD Switch Selector with Remote Control Type: 3D 4K*2K 1 in 3 out (1X3) HD Switcher Material: Plastic HDMI Version: HD 1.4b Maximum Signal Link Range: 4K x 2

HD Resolution

Onten 7593 3 in 1 576i / 576p / 720p / 1080i / 1080P / 4K Support Video Format: 3D Video Format Support Video Color Format: 24/30/36 bit deep color Input Video Signal: 0.5-1.0 volts p-p Support Audio Format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD Maximum Bandwidth: 300Mhz Maximum Transmission Rate: 10.2Gbps Input Cable Distance: 2m Standard AWG26 HD Cable Cable Distance output: 2m Standard AWG26 HD cable Maximum working current: 300mA Power adapter (not included): input: AC (50HZ,60HZ) 100V-240V; Output: DC 5V/1A Operating Temperature Range: -10~+55

 ULTRA HD RESOLUTION

Onten 7593 3 in 1 Support 4K, 3480x2160p, 3D, and 480i@60Hz/ 480p@60Hz/ 576i@50Hz/ 576p@50Hz/ 720p@50/ 60Hz/ 1080i@50/60Hz/ 1080p@50/60Hz/ 1080P 24Hz 3D/720 60Hz /4K@30HZ [For 4K resolution, the frequency can’t above 30Hz] Supports 1080P and 3D: Supports 3D video and high resolutions up to Full HD 1080P and 1920×1200, plus 480i/p, 576i/p, 720p and 1080i

In addition, Support HDMI v1.3/1.4, HDCP compliant ( version 1.2 ). Support deep color 30 bit/36 bit. Support audio format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)

Features :

1. Support 4K x 2K resolution

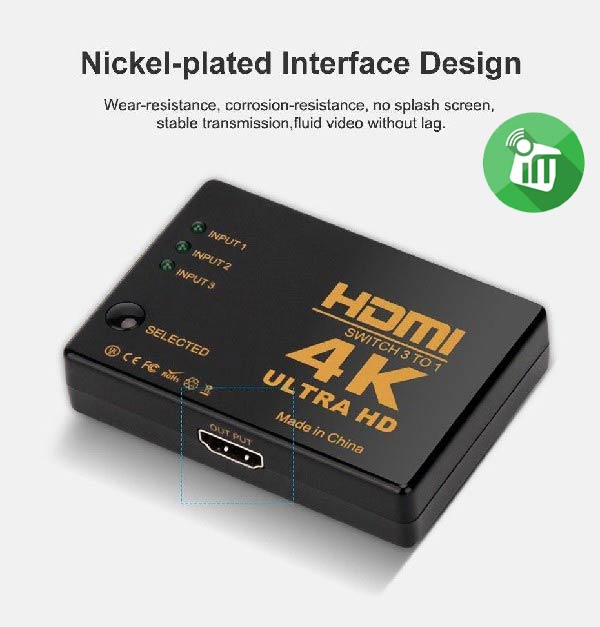

2. Made of durable high performance metal material

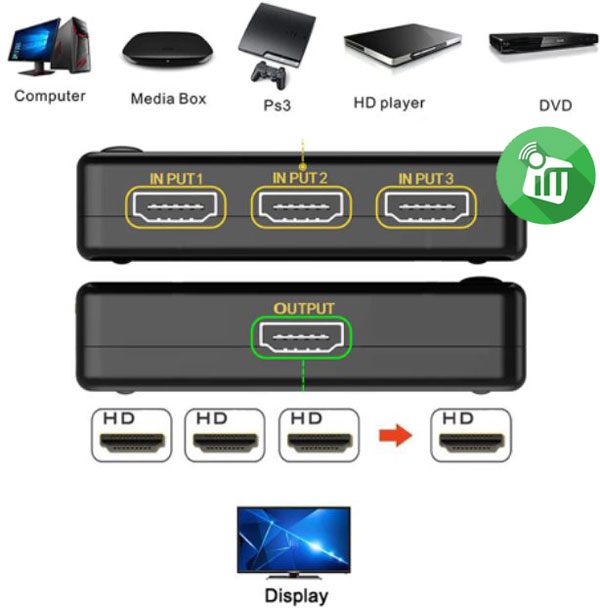

3. Connect up to 3 HD sources with HD display
4. Reduce the clutter of HD wires provided in your HDTV
5. Support signal timing reorganization
6. Allows you to easily connect multiple devices with HDMI ports
7. In addition, Supports 10.2Gbps transmission rate and maximum bandwidth up to 300MHz
8. Input can be remotely controlled by infrared switch, you can also control directly button
9. In conclusion, Works with all HDTV, STB, Blu-Ray, DVD, DSTV HD-PVR, PS3, PS4, Xbox 360, Xbox One, Projector

• Connect up to 3 HD sources with HD display
• Reduce the clutter of HD wires provided in your HDTV
• Support signal timing reorganization
• Allows you to easily connect multiple devices with HDMI ports
• Supports 10.2Gbps transmission rate and maximum bandwidth up to 300MHz
• Input can be remotely controlled by infrared switch, you can also control directly button
• Works with all HDTV, STB, Blu-Ray, DVD, DSTV HD-PVR, PS3, PS4, Xbox 360, Xbox One, Projector
