ASUS TUF GAMING Z690-PLUS WIFI D4 Intel® Z690 (LGA 1700) ATX Gaming Motherboard, 15 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots

Intel® Z690 (LGA 1700) ATX gaming motherboard, 15 DrMOS power stages, PCIe® 5.0, DDR4 memory, four M.2 slots, WiFi 6 and Intel 2.5 Gb Ethernet, HDMI®, DisplayPort™, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 2 Type C, SATA 6 Gbps, Thunderbolt™ 4 support and Aura Sync RGB lighting

Durable. Stable. Reliable.

ASUS TUF GAMING Z690-PLUS WIFI D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING Z690-PLUS WIFI D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

• HDMI

• DisplayPort

• 1 x USB 3.2 Gen 2×2 Type-C®

• 4 x USB 3.2 Gen1

• 2 x USB 3.2 Gen2

• Intel® 2.5G Ethernet

• 1 x USB 3.2 Gen 1 Type-C®

• Intel® Wi-Fi 6

• 7.1-ch Audio

• 1 x PCIe 5.0 x16 (CPU)1 x PCIe 3.0 x16 (PCH, at x4 mode)– ASUS SafeSlot

• Realtek® 7.1-ch Audio CODECExclusive DTS Audio Processing– TUF Gaming Audio Cover– Audio Shielding– Dedicated audio P.C.B layers– Premium audio capacitors

• ProCool Connectors

• 3 x Addressable Gen 2 RGB headers1 x RGB Strip header

• DrMOS

• AURA Sync

• DDR4 5333 (OC)ASUS OptiMem II

• Intel® Socket LGA1700 for 12th Gen Intel® Core™,Pentium® Gold and Celeron® Processors

• 1 x Front USB 3.2 Gen 2 Type-C® port

• 1 x Front USB 3.2 Gen 1 header

• 2 x M.2 22110 PCIe 4.0 x4 mode1 x M.2 2280 PCIe 4.0 x4 & SATA modes1 x M.2 2280 PCIe 4.0 x4 mode

• 4 x SATA 3.0 Ports

• Intel® Z690 Chipset

• 2 x Front USB 2.0 headers

• 1 x Thunderbolt header

•

  Power Design

•

  Cooling

•

  Memory & Storage

•

  Connectivity

Power Design

• Driver and MOSFET

• Multilayer P.C.B

• Power Connector

• System Stability

• Controller

DrMOS

The onboard VRMs feature 14+1 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 12th Gen Intel Core processors demand.The power stages are each rated to handle 80 amperes to provide stable performance for current and future Intel processors.

•

  TUF Gaming Alliance

•

  TUF Protection

•

  Easy Configuration

Build with Confidence

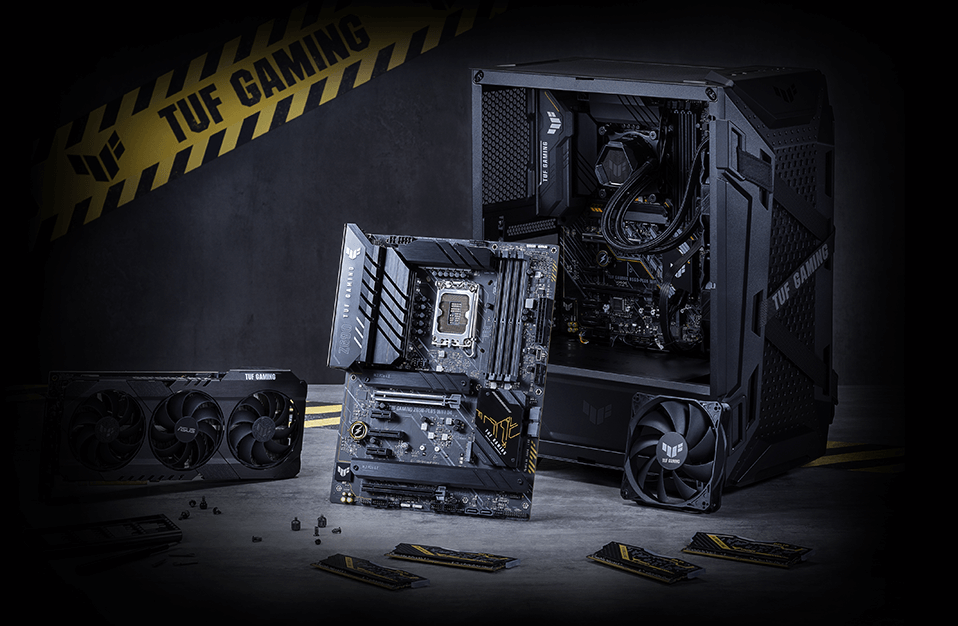

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.Learn More

•

  Networking

•

  Two-Way AI NoiseCancelation

•

  Gaming Audio

•

  Aura Sync RGB Lighting

Networking

• Intel® WiFi 6

• Intel® 2.5 Gb Ethernet

Intel®WiFi 6

The Intel® WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. The WiFi antenna designs with four-way positioning that enables better signal reception, and a magnetic base to secure the antenna on the top or side of the PC case.

• Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors


• Enhanced power solution: 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery


• Next-gen connectivity: PCIe® 5.0, USB 3.2 Gen2x2 Type-C®, front USB 3.2 Gen 2 Type-C, Thunderbolt™ 4 header support


• Made for online gaming: WiFi 6, Intel 2.5 Gb Ethernet and TUF LANGuard


• Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences


• Comprehensive cooling: Enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate


• Outshine RGB Aura Effect: Stylish edge and PCH lighting design, addressable RGB headers and RGB strip header support
