Cooler Master MasterFan MF120 Prismatic PC Fan 120mm Triple Ring Addressable RGB Lighting, Cristal Effect and Silent Cooling

Weight	0.1 kg
Color	Black

Cooler Master MasterFan MF120 Prismatic ARGB Cooling Fan
Cooler Master MasterFan MF120 Prismatic, a new series to the MasterFan family in 2020-Q4, provides a specific air cooling solution ideal for CPU coolers and chassis in-take fans, with Tri-Loop Addressable RGB Lighting and crystallized loop design. MF120 Prismatic is fitted with multiple layers of Cooler Master exclusive noise reduction technologies and a perfect blend of fan blade designs that put together work in harmony to cool your entire case and its components in silence. It’s also perfect for upgrading your CPU Cooler / CPU Liquid Cooler.

IMPORTANT NOTE:
(1)The Addressable RGB Light function MUST work with an Addressable RGB(+5V, 3-pin) capable motherboard or an Addressable RGB(+5V, 3-pin) controller, which is NOT included in this selling package.
(2)It will NOT work with 4-pin RGB or Standard RGB+12V.
(3)The ARGB connection header of this case fan is 4-position-3-pin, a 3-position-3-pin ARGB header adapter may be needed for some Gigabyte motherboards. Please check the ARGB motherboard of your motherboard before purchase!

Features:

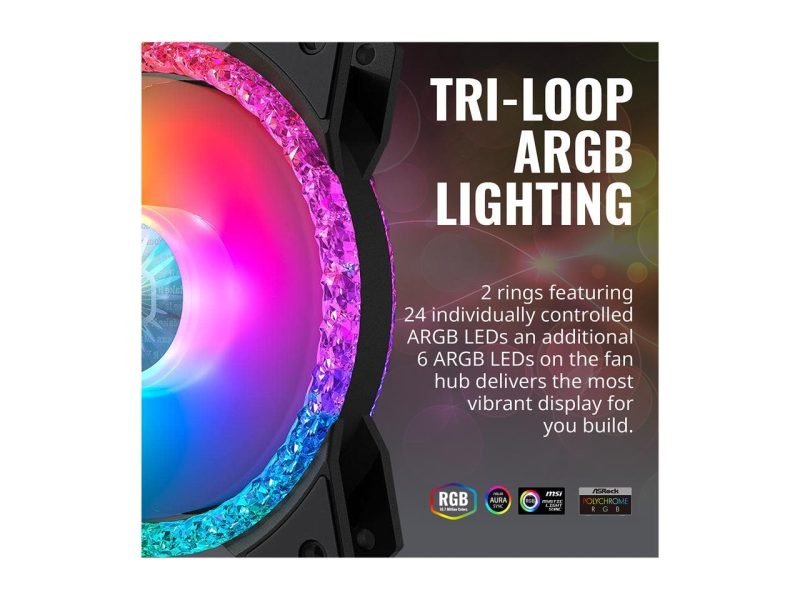

Tri-Loop Addressable RGB Lighting
24 Individually controlled Addressable RGB LEDs are evenly placed around the crystallized loop design (12 ARGB LEDs on each side) and an additional 6 Addressable RGB LEDs on the fan hub.
Certified Compatible with Asus Aura, ASRock Polychrome Sync, and MSI Mystic Light Sync.
NOTE for Gigabyte Motherboard Owner:
A Gigabyte Adapter Cable may be required to connect “MF120 Prismatic” to some models of Gigabyte RGB Fusion Addressable RGB capable motherboard with 3-position-3-pin ARGB Header. “Gigabyte Adapter Cable” or “Addressable RGB LED Small Controller” are SOLD SEPARATELY!

Radiant Crystalline Lighting Effect
Unique crystallized loop design on the front and back of the fan for the most vibrant dispersion od addressable RGB lighting.

Silent Driver IC and Cooling Technology
Silent Driver IC smoothes fan rotation reducing vibration and fan clicks. Noise reduction technology offers a peaceful cooling solution even when overloading, while rifle-bearing structures offer 160,000 hours long life and quiet operating noise at 8-27dBA.

Two-tier sealing mechanism
The sealing mechanism designed to improve dustproof capabilities and prevent lubricant oil leakage for extended life span and performance.

Hybrid Fan Blade Design
Air Balance Fan Blade Combined with Wave Shape Blades, Inspired by Jet Engine and Helicopter Blade Gives Your System Static Air Pressure Without Compromising Airflow.

Secure Connection
Includes Addressable RGB connector clips to ensure a secure connection.

Smart Fan Sensor for Jam Protection
Smart fan sensors protect your cables and components from being snagged, damaged, or pulled by your fans. Don’t worry about jams damaging your components ever again.

Specifications:
• RGB Profile: Addressable RGB (+5v, 4-position-3-pin)
• Fan Dimensions: 120 x 120 x 25 mm (4.7 x x 4.7 x 1 inch)
• Fan Weight: 153g (0.34 lb)
• Fan Speed: 650~2000 RPM ± 5%
• Fan Air Flow: 55 CFM (Max)
• Fan Air Pressure: 2.91 mm H₂O (Max)
• Fan Noise Level: 8 – 27 dBA
• MTTF: 160,000 hours
• L-10 Life: 22,800 hours
• Bearing Type: Rifle Bearing
• Power Connector: 4-Pin (PWM)
• Fan Rated Voltage: 12 VDC
• Fan Rated Current: 0.12A
• Fan Safety Current: 0.37A
• RGB Rated Voltage: 5 VDC
• RGB Rated Current: 1.40A
• Fan Power Consumption: 1.44W

Package and Contents:
• 1 x Cooling Fan
• 4 x Mounting Screws
• 1 x ARGB connector clip
• Item in retail packaging

• Fan Rated Voltage: 12 VDC
• RGB Rated Voltage: 5 VDC
• Fan - LED Lighting: ARGB
• RGB Connector: 3-Pin ARGB
• Fan Power Connector: 4-Pin (PWM)
• Fan MTTF: 160,000 Hours
• Fan Bearing Type: Rifle Bearing
• Cooler Type: Case Fan
• Fan Safety Current: 0.37A
• Fan Size: 120
• RGB Rated Current: 0.65A
• Fan Profiles: Addressable Gen 2 RGB
• Fan Rated Current: 0.12A
• Fan Power Consumption: 1.44W
• Number of LEDs: 30pcs
• Fan Dimensions (L x W x H): 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
• Series: MasterFan
• Fan Weight: 153g / 0.34 lbs
• Fan Noise Level: 8 - 27 dBA
• Fan Speed: 650-2000 RPM ± 5%
• Fan Air Pressure: 2.91 mmH2O (Max)
• Fan Airflow: 55 CFM (Max)
• Product Number: MFY-B2DN-20NPA-R1
